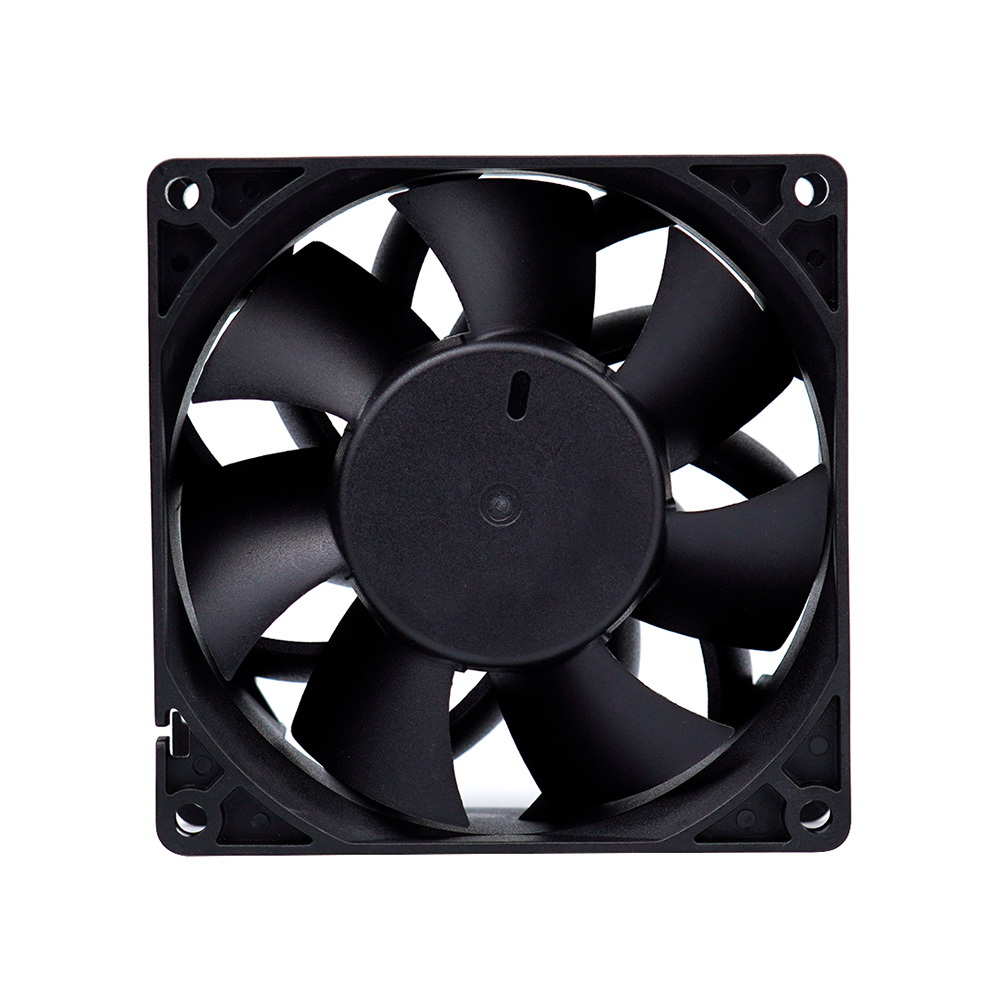

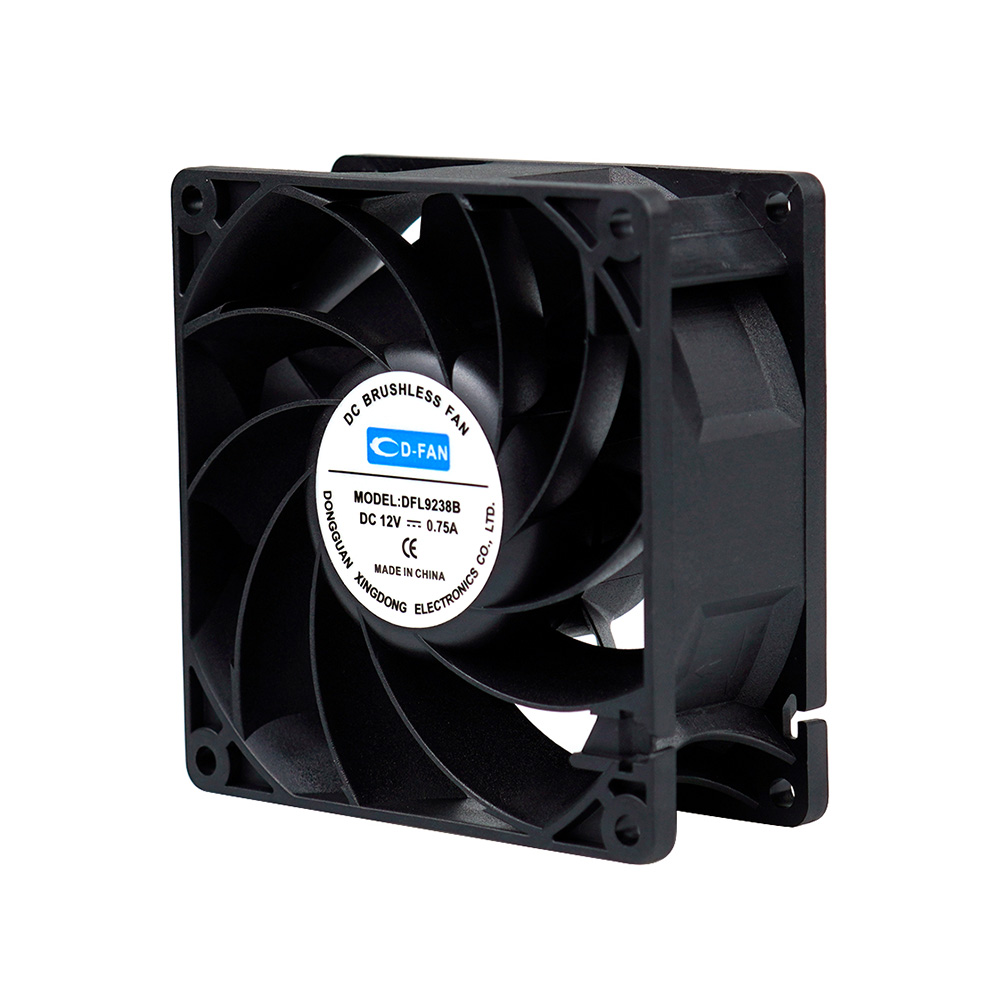

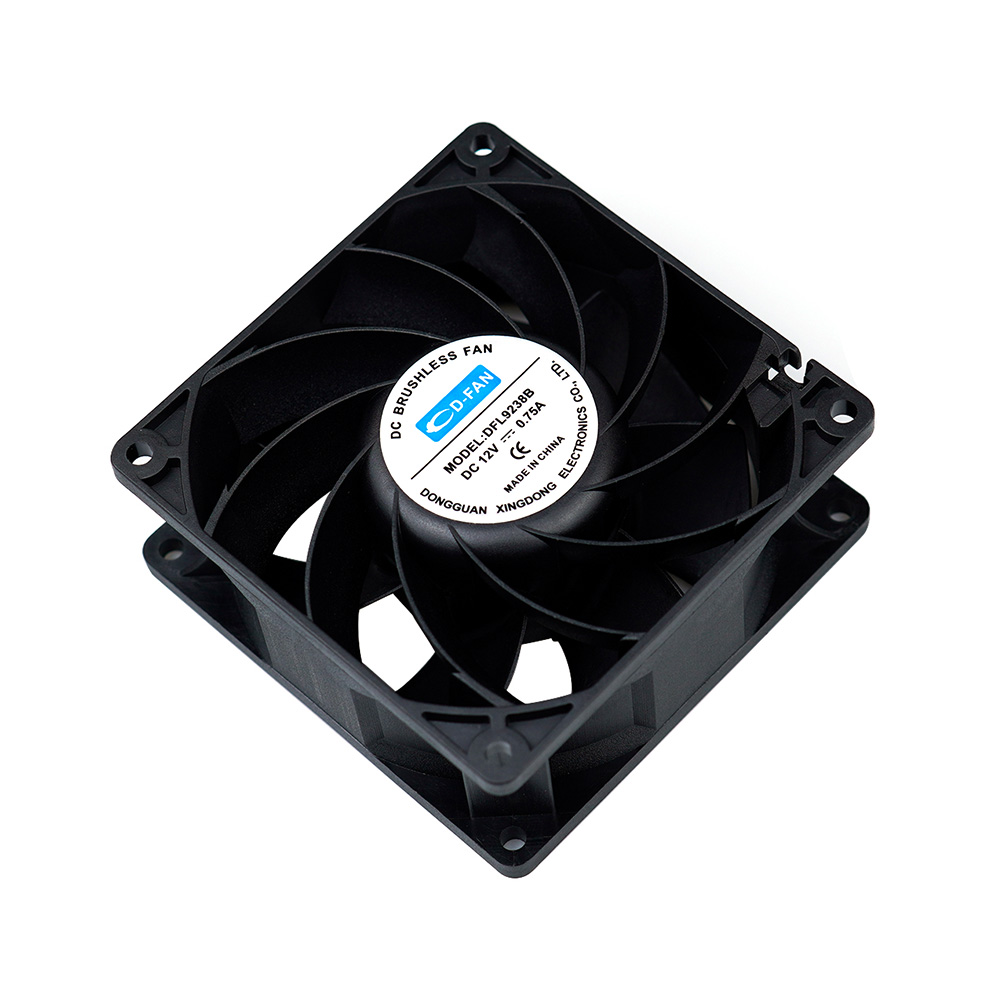

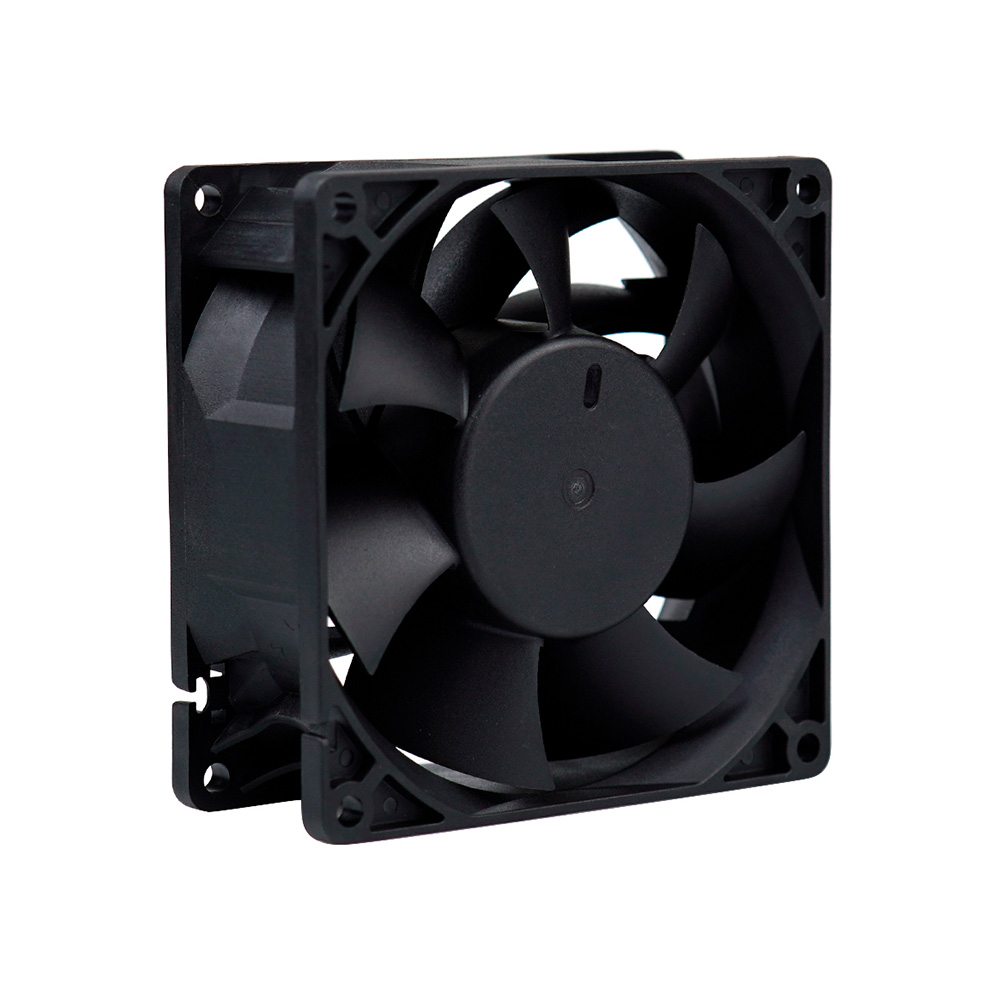

DC Axial Fan-9238

· Ultra-quiet/Low noise, minimum noise level is 18.5dB

· Not afraid of harsh environments, high stability, long lifespan up to 80,000 hours

· Waterproof and dustproof up to IP68 rating, can work directly in water

· Supports PWM intelligent Number Of Rotations control, DC voltage Number Of Rotations control, RT temperature control Number Of Rotations regulation

· Supports FG signal, RD function, PWM intelligent Number Of Rotations control, DC voltage Number Of Rotations control

· High temperature resistance, low temperature resistance

Consult Now

Product Attributes:

Brand:
Xingdong D-FAN
Model:
9038
Material:
PBT 94V-0
Specification:

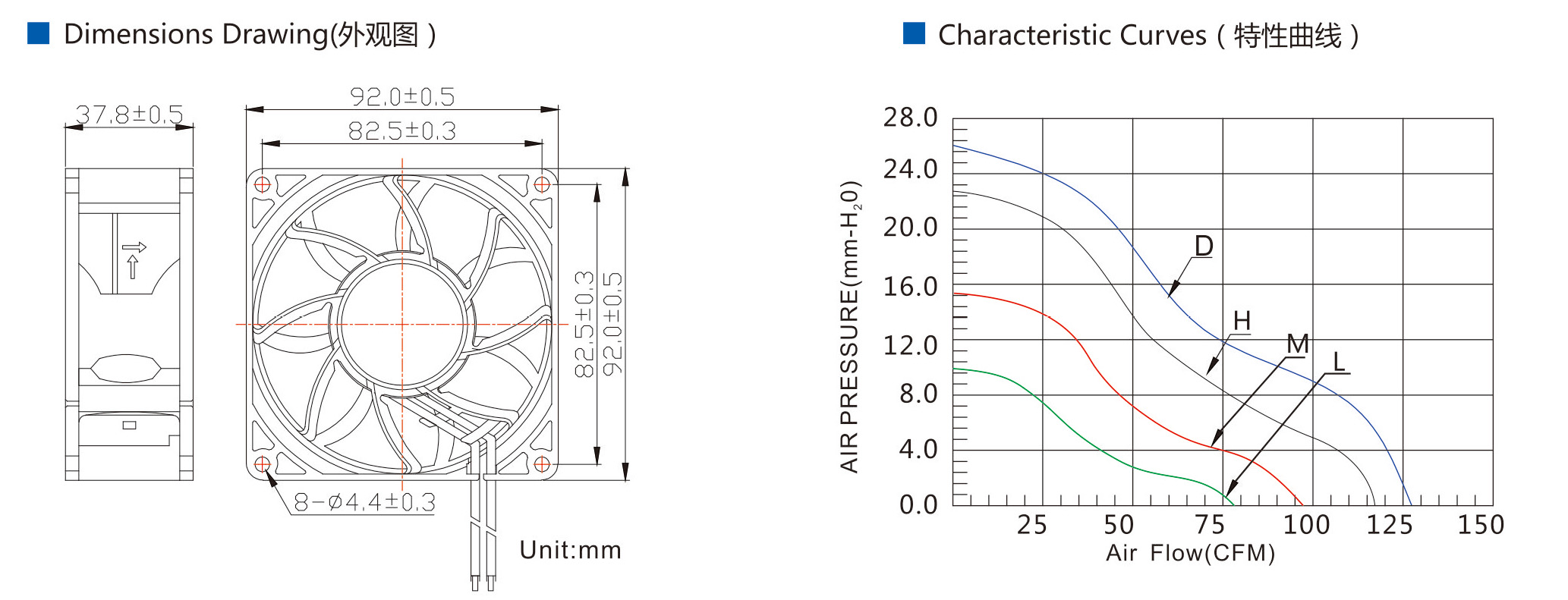

92x92x38mm
Insulation impedance:
10M Ω/DC250V
Insulation withstand voltage:
1mA AC500V/1S
Wireway:
National standard line: Red is positive (+), black is negative (-)
Environmental temperature range:
-10 ℃~+70 ℃ (working) -40 ℃~+70 ℃ (storage)

Specifications:

Model	Bearing Type	Voltage	Voltage Range	Electric Current	Number of Rotations	Air Volume	Wind Pressure	Noise	Weight
Model	Bearing Type	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	g
DFD9238S-2	Sleeve	12	10.8-13.2	2.00	6500	127.13	26.60	59.8	200
DFH9238S-2				1.35	6000	117.35	22.67	58.1
DFM9238S-2				0.95	5000	97.79	15.74	54.1
DFL9238S-2				0.75	4000	78.23	10.07	49.3
DFD9238B-2	Ball			2.00	6500	127.13	26.60	59.8
DFH9238B-2				1.35	6000	117.35	22.67	58.1
DFM9238B-2				0.95	5000	97.79	15.74	54.1
DFL9238B-2				0.75	4000	78.23	10.07	49.3
DFD9238S-3	Sleeve	24	21.6-26.4	1.20	6500	127.13	26.60	59.8
DFH9238S-3				0.65	6000	117.35	22.67	58.1
DFM9238S-3				0.50	5000	97.79	15.74	54.1
DFL9238S-3				0.35	4000	78.23	10.07	49.3
DFD9238B-3	Ball			1.20	6500	127.13	26.60	59.8
DFH9238B-3				0.65	6000	117.35	22.67	58.1
DFM9238B-3				0.50	5000	97.79	15.74	54.1
DFL9238B-3				0.35	4000	78.23	10.07	49.3

Advantages:

Six Major Upgrades: High Efficiency, Strong Airflow, Low Noise, Pure Copper Motor, Easy Installation, Durable

High Efficiency

Upgraded fan with powerful airflow and low energy consumption, saving energy for you.
Strong Airflow

Pure copper coil motor, high airflow, low vibration, stable operation for comfort.
Low Noise

Advanced noise reduction tech for quiet operation and peaceful living space.
Easy Installation

Fixed bracket included, easy to install, sturdy and durable.
Durable

Copper coil motor, 24/7 stable operation, lifespan up to 40,000 hours.
One-Stop Service

Full solutions for AC fans, DC fans, and cooling accessories to meet all needs.

Applications:

household electrical appliances

lamps and lanterns

bathroom

new energy

photovoltaic

car

The server

Refrigeration
